(Was 058LP)
Benefits & Features
- Economical Low-Pressure Stainless Steel
- Provides direct visual observation of process in vessels
- Welds directly to vessel
- 6 Different Sizes
- 15 PSIG Rating
- Materials conform to ASME
| Standard Specifications* | |||||||
|---|---|---|---|---|---|---|---|
| Wetted Materials | Non-Wetted Materials | ||||||
| Style | Weld Pad | Gasket | Glass | Cover | Cushion | Fasteners | Non-Steam Pressure Ratings |
| FP | 316LSS | Solid PTFE | Tempered Borosilicate | 316Ti SS | Inorganic Fiber | 304SS | 15 PSIG @ 450°F |
*Optional materials are available for weld pad, glass, and gaskets. See matrix or consult factory.

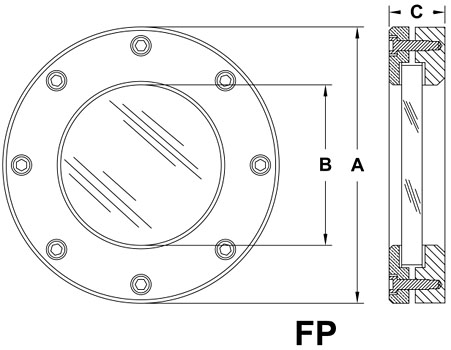

| Dimensions | |||
|---|---|---|---|
| Size DN | A | B | C |
| 50 (2”) | 5.51” | 3.15” | 1.22” |
| 80 (3”) | 6.50” | 3.94” | 1.22” |
| 100 (4”) | 7.48” | 4.92” | 1.22” |
| 125 (5”) | 8.46” | 5.91” | 1.22” |
| 150 (6”) | 9.45” | 6.89” | 1.22” |
| 200 (8”) | 11.42” | 8.86” | 1.22” |
Application Notes:
- Saturated Steam Service: Consult factory
- Potable Water: Suitable
- Vacuum Service: Contact Factory
- Gaseous Service: Not acceptable
- Compatibility: Before ordering, verify all materials are compatible with the service media(s), intermittently used cleaners, the environment, and cleaning processes in conjunction with the temperatures and pressures of the application(s) and future applications. John C. Ernst Co. does not make chemical compatibility recommendations. Compatibility is the responsibility of the user and/or specifying party.
WARNING: This product can expose you to certain chemicals, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
Replacement Parts
- Please contact our Sales Dept. sales@ernstinstruments.com or call 888-943-5000
Model Number Matrix
