Series T18
Glass Guard Rods & Protector Shields
WE CUT TO ANY LENGTH
Glass Tube Protection
- 304SS Guard Rods
- Polycarbonate with 360° protection and viewing
- 304SS with 360° protection and slotted for viewing
- 3-Sided & V-shaped with aluminum framing choice of Arcylic or Wire-Glass protection
| Protector Shields | ||||||||
|---|---|---|---|---|---|---|---|---|
| Style | Protector Type | Diameter | Material | Maximum Length | Viewing Area | Fits Our Valve Styles | Notes | Typical Availability |
| 839A | Guard Rod | 3/16” | 304SS | 144” | 360° with very slight obstruction | All Except Series T16 | Most Popular Offers minimal glass/tube protection Capped on one end Rods over 48” are threaded on both ends fitted with nuts | Ships same or next day |
| 839B | Guard Rod | 1/4” | 304SS | 144” | 360° with very slight obstruction | Series T16 | For Heavy Duty Valves Offers minimal glass/tube protection Rods over 48” are threaded on both ends fitted with nuts | Ships same or next day |
| 840 | Round Protector | Varies | Polycarbonate | 144” | 360° | All | Offers more glass/tube protection with maximum visibility Rated to 200°F | 4-5 working days |
| 843 | Round Protector | Varies | 304SS | 144” | 1/2” wide front slot 1/8” wide back slot | All | Offers maximum glass protection with limited visibility | 4-5 working days |
| 313 | 3-Sided | -- | Acrylic or Wire Glass | 72" | 360° slight obstrution | Most Valves | Great protection with vessel side open for accessory mounting | 7-10 working days |
| 31V | V-Shaped | -- | Acrylic or Wire Glass | 72" | 360° slight obstrution | All | Great Protection for limited space between glass/tube & vessel | 7-10 working days |
Warning: These protector shields are limited to protecting the tube it surrounds as mentioned in Notes above and do not necessarily protect the users/operators of the gauge valves should a rupture of the tube occur.

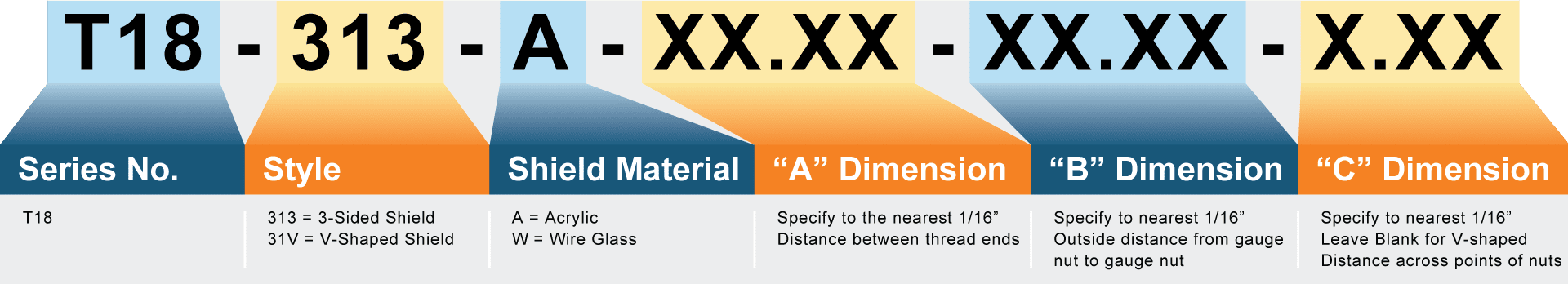

To Order 313/31V Protectors Specify:

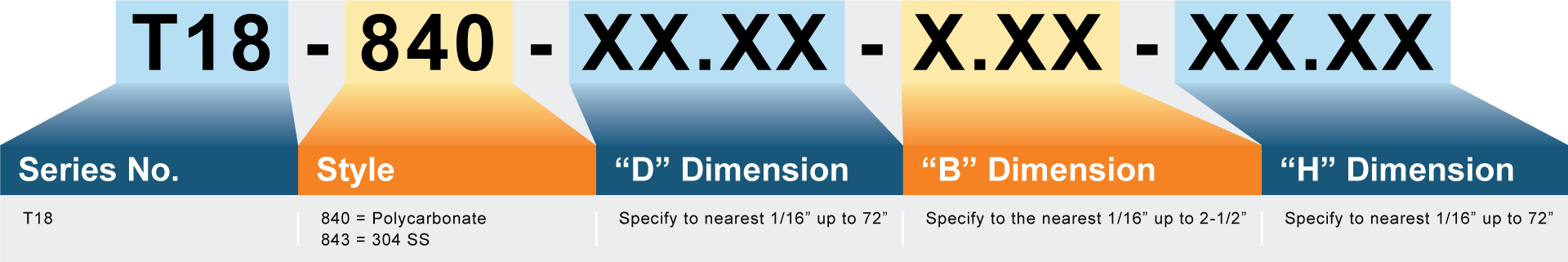

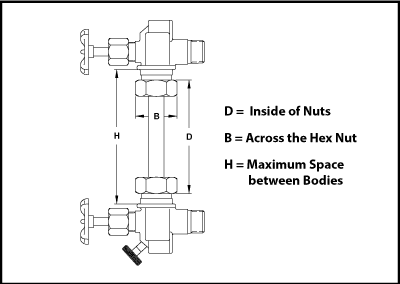

To Order 840/843 Protectors Specify:
Alternative Glass Tube Shielded Gauges: Series J14
Model Number (Protector Shields)

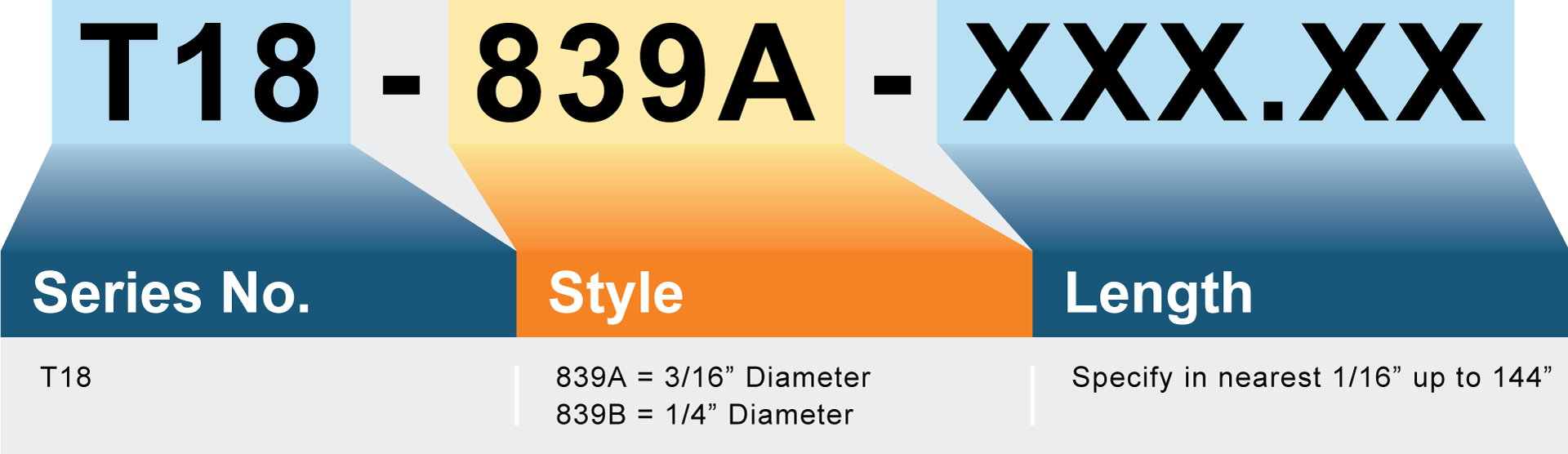

Model Number Matrix (Guard Rods)
