(Was Model 6270)
Standard Features:
- Full View Indicator Lined Indicator
- FEP Translucent Extruded Tube (Not as clear as glass)
Standard Connections:
- ½” to 2” Tri-Clamp Connections
Standard Ratings:
| Size | 70°F | 170°F | 300°F |
|---|---|---|---|
| 1/2" to 1½" | 150 PSIG | 110 PSIG | 75 PSIG |
| 2" | 100 PSIG | 75 PSIG | 50 PSIG |
Note: The ratings of Tri-Clamp units are dependent on ratings of clamps and gaskets (not provided)
Standard Wetted Materials:
- Tube: FEP
- Fittings: 316SS
| Visible Lengths* | |||||
|---|---|---|---|---|---|
| Size | Overall Length ±1/4” | ||||
| 6” | 12” | 18” | 24” | 36” | |
| 1/2" | 4-1/4” | 10-1/4” | 16-1/4” | 22-1/4” | 34-1/4” |
| 3/4” | 4-1/4” | 10-1/4” | 16-1/4” | 22-1/4” | 34-1/4” |
| 1” | 4-1/4” | 10-1/4” | 16-1/4” | 22-1/4” | 34-1/4” |
| 1-1/2” | 4” | 10” | 16” | 22” | 34” |
| 2” | 4” | 10” | 16” | 22” | 34” |
*Custom Lengths available. Please inquire.
Options:
- Custom Lengths Up To 20 Feet
- Male or Female Camlock
- Measurement Scale In Inches
Application Notes:
- Steam Service: Not acceptable
- Potable Water: This unit has not been tested and certified to be acceptable for potable water
- Vacuum Service: Suitable for vacuum service at 70°F
- Gaseous Service: Not designed for gases
- Corrosion: Before ordering, verify all materials of our sight flow indicators are compatible with the service media(s), intermittently used cleaners, the environment, and cleaning processes in conjunction with the temperatures and pressures of the application(s) and future applications. John C. Ernst LLC. does not make chemical compatibility recommendations. Compatibility is the responsibility of the user.
Replacement Parts:
- Please contact our sales department
Alternate Equipment:
- Sanitary Tri-Clamp Indicators: Series S23B
- Tri-Clamp Indicators: Series S23A

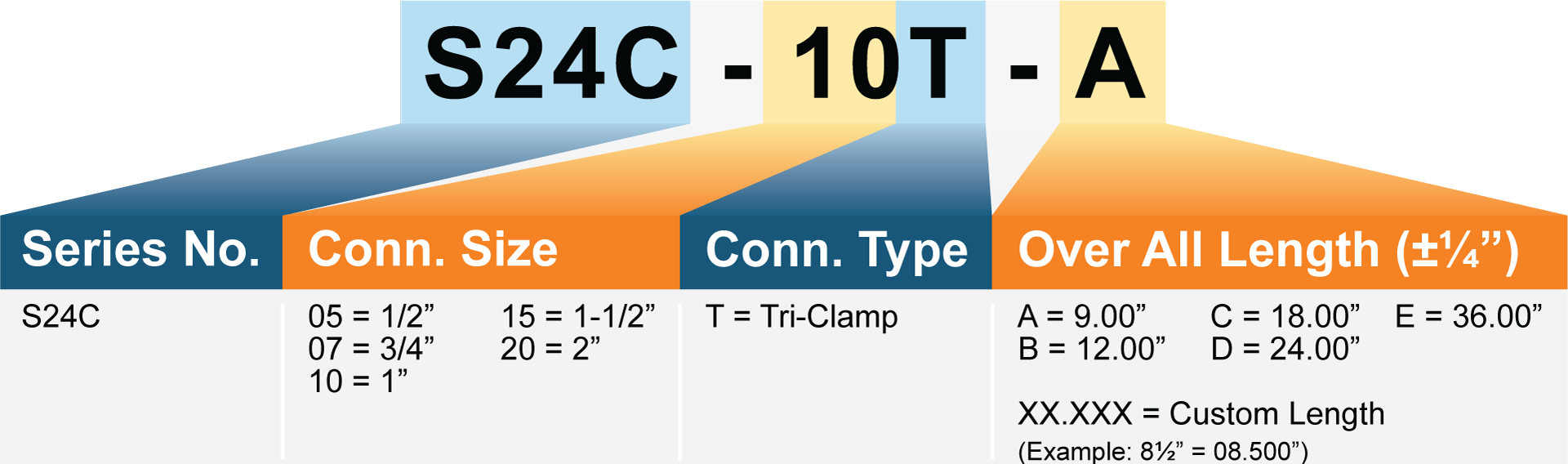

MODEL NUMBER MATRIX
