(Was Model 6270)
Standard Features:
- Full View Indicator Lined Indicator
- FEP Translucent Extruded Tube (Not as clear as glass)
- No Metal Contact With Media Flanges (No gaskets)
- Swivel Flanges
Standard Connections:
- 1/2″to 4″150Lb Swivel Flanges
Standard Ratings:
| Size | 70°F | 170°F | 300°F |
|---|---|---|---|
| 1/2" to 1½" | 150 PSIG | 110 PSIG | 75 PSIG |
| 2" | 100 PSIG | 75 PSIG | 50 PSIG |
| 3" | 50 PSIG | 35 PSIG | 25 PSIG |
| 4" | 25 PSIG | 15 PSIG | 10 PSIG |
| Visible Lengths* | |||||
|---|---|---|---|---|---|
| Size | Overall Length ±1/4” | ||||
| 6” | 12” | 18” | 24” | 36” | |
| 1/2" | 4-1/4” | 10-1/4” | 16-1/4” | 22-1/4” | 34-1/4” |
| 3/4” | 4-1/4” | 10-1/4” | 16-1/4” | 22-1/4” | 34-1/4” |
| 1” | 4-1/4” | 10-1/4” | 16-1/4” | 22-1/4” | 34-1/4” |
| 1-1/2” | 4” | 10” | 16” | 22” | 34” |
| 2” | 4” | 10” | 16” | 22” | 34” |
| 3” | 4” | 10” | 16” | 22” | 34” |
| 4” | 4” | 10” | 16” | 22” | 34” |
*Custom Lengths available. Please inquire.
Standard Wetted Materials:
- Tube: FEP
Standard Non-Wetted Materials:
- Flanges: 316SS
- Flange Retainers: 304SS
Options:
- Custom Lengths Up To 20 Feet
- Measurement Scale In Inches
Application Notes:
- Steam Service: Not acceptable
- Potable Water: This unit has not been tested and certified to be acceptable for potable water
- Vacuum Service: Suitable for vacuum service at 70°F
- Gaseous Service: Not designed for gases
- Corrosion: Before ordering, verify all materials of our sight flow indicators are compatible with the service media(s), intermittently used cleaners, the environment, and cleaning processes in conjunction with the temperatures and pressures of the application(s) and future applications. John C. Ernst LLC. does not make chemical compatibility recommendations. Compatibility is the responsibility of the user.
Replacement Parts:
- Please contact our sales department
Alternate Equipment:
- Teflon®Lined/Insert Indicators: Series S19F
- Fully Shielded Indicators with Teflon® Lined/Inserts: Series S18FL

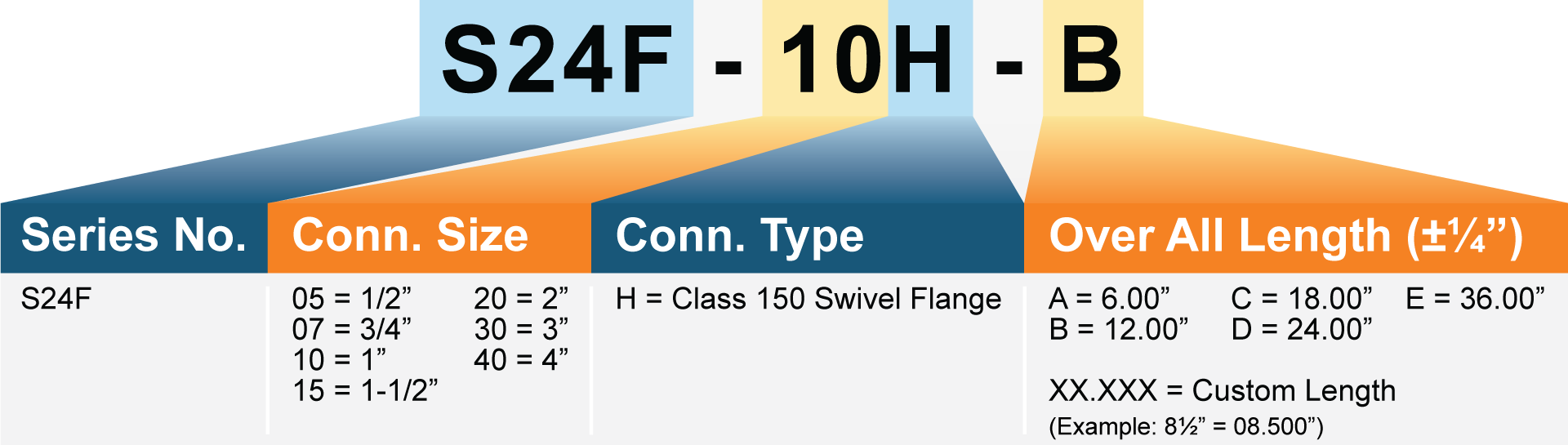

Model Number Matrix
